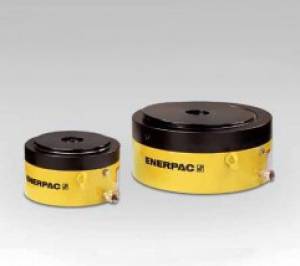

سری CLP، سیلندر دارای مهره قفل کننده پنکیکی

??K2_**شنبه**ب ظUTCE_اسفند+0000Rاسفندب ظUTC_0C2??

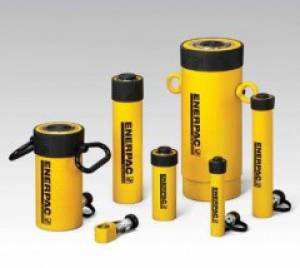

سیلندر تک اثره، سری RC

??K2_**پنج شنبه**ب ظUTCE_اسفند+0000Rاسفندب ظUTC_0C2??

Y8C series

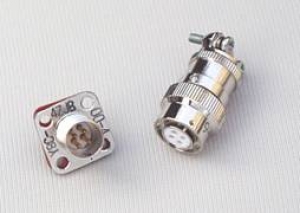

Y8C series circular connectors have the features of small size,light weight,convenient application with threaded-coupling connection.They are widely used for the electrical connection between electrical equipments and instruments.
Product Ordering
               Y 8C   - 3   Z   J   B    M
                 1        2    3   4   5     6
    1. Name of series: Y8B series circular military connectors
2. Number of contacts:2,4,5,7
3. T-Plug,Z-Receptacle
     4. Type of contacts:J-Pin,K-Socket
     5. Termination:L-Cable,B-Square flange
     6. M-Receptacle sealing


Specifications︰ Y8C series circular connectors have the features of small size,light weight,convenient application with threaded-coupling connection.They are widely used for the electrical connection between electrical equipments and instruments.
Product Ordering
Y 8C - 3 Z J B M
1 2 3 4 5 6
1. Name of series: Y8C series circular military connectors
2. Number of contacts:2,4,5,7
3. T-Plug,Z-Receptacle
4. Type of contacts:J-Pin,K-Socket
5. Termination:L-Cable,B-Square flange
6. M-Receptacle sealing
Advantages︰ Y8C series circular connectors have the features of small size,light weight,convenient application with threaded-coupling connection.They are widely used for the electrical connection between electrical equipments and instruments.


1-Y8C-5TK-X14

2-Y8C-5TK-X16

3-Y8C-5TJ-X13

4-Y8C-5TJ-X15



Y8C-5TJ

Y8C-5TK




Standard Met︰ GJB-600
??K2_**پنج شنبه**ب ظUTCE_اسفند+0000Rاسفندب ظUTC_0C2??

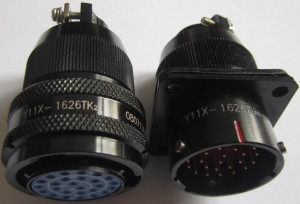

Y11 series

??K2_**پنج شنبه**ب ظUTCE_اسفند+0000Rاسفندب ظUTC_0C2??

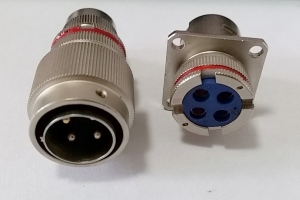

Y17 series

Y17 series of circular connectors are widely used for connection between serious kinds of electrical equipment. Coupling by bayonet, easy to use, reliable locking, complete specifications, and the error interpolation agencies.

Conditions of use environment

Relative temperature : -55 ° C ~ +125° C -55 ° C ~ +175° C
Relative Humidity : when40 ± 2 ° C, up to 92% ± 98%
Operating Pressure : 101.33KPa ~ 4.4kPa 101.33KPa ~ 1.33kPa
Sin Vibration: vibration frequency 10Hz ~ 2000HZ, acceleration 98m/s2
vibration frequency 10Hz ~ 2000HZ, acceleration 196m/s2
Impact : acceleration 490m/s2,980 m/s2
Collision : acceleration 392 m/s2
Centrifugal power: acceleration 245m/s2, 784m/s2
Note : * applies only to Y17 - 1604; ** Applies only to Y17 - 2804 and Y17 - 2824.

??K2_**پنج شنبه**ب ظUTCE_اسفند+0000Rاسفندب ظUTC_0C2??

Y27 series

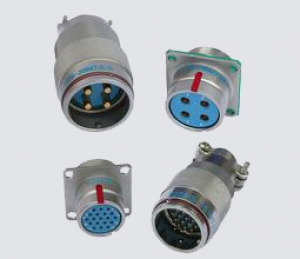

Y27 series circular connector   Y27A-0804TKZ/ZJ13M
GJB2905-97 Standard compliant, push-pull type. Material: aluminium alloy or naval brass or stainless steel. It is widely used in the filed of  telecommunication,watercraft.
Y27 series circular connector
Push-pull type,  fast to connect and rapid to disconnect. Can be used for blind plug or other plug status. Anti-vibration
Salt mist resistance, prevention from electro-magnetic interference. Shell has 13 size, 1-121 pin numbers, 3-250A current, GJB2905A-2004 Standard compliant,functions refer to MIL-C-38999 Standard.

Main Features:
-Working environment:
 Solder type:-55℃—125℃
-Relative humidity:92-98% at 40+/-2℃
-Working air pressure: 101.3kPa~1.33Pa
 -Vibration: positive rotation vibration: 10Hz-2000Hz   acceleration 196m/s²
         random vibration: PSD Power Spectral Density 0.4G²/Hz, acceleration rootsquare value: 23.1G
-Shock:980m/s²;
-Acceleration:980m/s²;
-Salt mist resistance: Y27, Y27A,B,C series: 48h
                         Y27F,G,H series: aluminium alloy shell: 96h, naval brass/stainless steel: 1000h
-Electro-magnetic interference shielding: interference frequency: 100MHz~1GHz, minimum attenuation: 45dB
-Immersion depth: 2m

??K2_**پنج شنبه**ب ظUTCE_اسفند+0000Rاسفندب ظUTC_0C2??

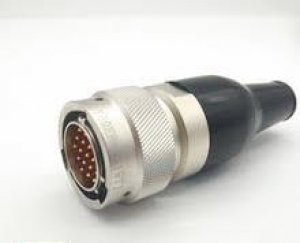

Y37 series

??K2_**پنج شنبه**ب ظUTCE_اسفند+0000Rاسفندب ظUTC_0C2??

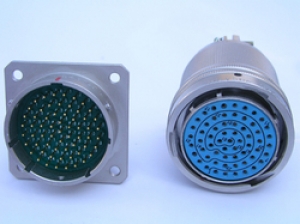

Y50X series

 Product Profile

*  In conformity with GJB101A-97General Specifications for Small Environment-resistant Quick Disconnect Circular Electric Connector;



* Bayonet-type quick connection, with a small volume and low height;

* The methods for installation of receptacles include installation by square flange, nut fixing, and bulkhead modes, etc;

* The contact elements are of welding;

* The shell is of shielded or non-shielded protective layer;

* Apply to connection with strategic and tactical systems, electronic countermeasures system, electric energy of field operation, communication;

signal connection system, aviation, spaceflight and navigation communication and test tracking system, computer system,

electric railway command system, imported medical instruments and equipment, etc;

* Follow the enterprise standard Q/321283LSB05

??K2_**پنج شنبه**ب ظUTCE_اسفند+0000Rاسفندب ظUTC_0C2??

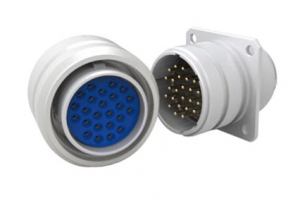

J14 series

Specifications

1. Conforming to standard GJB101A
2. Internal-bayonet coupling



Y50DX series circular connectors are made conforming to GJB101A standard. The corresponding plugs or receptacles of the same model can be interchanged. This series connectors adopt bayonet coupling mechanism, with the features of quick connection, long durability and high reliability.



This series connectors are used in high- current wire connection of electrical euipment .



Circumstance conditions:

Environmental temperature: -55°c~+125°c

Relative humidity: 90%~95%,  +40°c

Atmospheric Pressure: 101.33KPa~1.33KPa

Sinusoidal vibration: 10~2000Hz, 196 m/s2

Crash: 392m/s2

Shock:980m/s

 Salt spray: meet standard GJB101A



Electrical feature:

Rated current

Pin diameter Ø2.5mm Ø3mm Ø3.5mm Ø4mm Ø5mm Ø6mm Ø7mm Ø9mm Ø10mm
Rated current 25A 40A 50A 60A 75A 90A 100A 150A 200A

Contact resistance:≤1mΩ

Insulation resistance: ≥3000MΩ

Dielectric withstand voltage:1500V



Mechanical features:

Sealing:≥0.2MPa

Housing material: Aluminium

Plating: pins: gilded.

Life time: 500 times



The structure can be:      a.Welding glue seal

                                            b.Shielded glue seal welding;

The plug type:   Grounding impacted plug;  Plug with cable clamp;  Simple plug: Anti-wave tensile plug; Elbow guard plug.

The receptacle type: Square flange receptacle; Square flange end-to-end receptacle; Circular flange end -to-end receptacle;  Nut fixtion receptacle.



Specific dimension: (mm)

??K2_**پنج شنبه**ب ظUTCE_اسفند+0000Rاسفندب ظUTC_0C2??

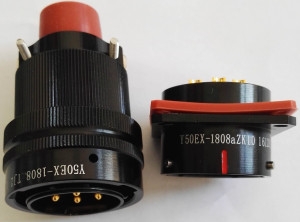

Y50EX series

Key Specifications/Special Features:

Y50EX series circular connectors are inner pin locked type for British system, military quality, featuring quick connection and separation, small volume, lightweight, good sealing and anti-tensile performance
The type of terminations include soldered and crimped, shielded and non-shielded housing, straight and bent cable outlet ends, ordinary, high vacuum and high pressure sealing
It's specification meet the requirements of GJB101A, GJB598A, MIL-C-26482G standard
Widely used for energy and signal connections in strategic and tactical systems and field operations
Product ordering
              Y50/E/X/-20/41/Z/J/10
              1/2/3/4/5/6/7/8
     1.Product name: Y50 series circular connectors
     2.Type: E: British system
     3.Structure: X:ordinary rubber sealing
4.Shell: 08, 10, 12, 14, 16, 18, 20, 22, 24
5.Contacts: 3-61
6.Type: T:plug, Z: receptacle: ZS: thru bulkhead receptacle
7.Contacts type: J: pin, K: socket, S: panel
8.Receptacle: 10: square flange mounting, 10-2: with cable, 11: circular flange, 14­: screw connection
Plug: 1: grounded pressure, 2: cable clipper, 4: anti-tensile shell, 5-angled, 6: waterproof cable shell
.Technical characteristics:
Mould: tested as per provisions in 4.16 of GJB598A
Saline fog: tested as per provisions in 4.17 of GJB598A
Rainproof: tested as per provisions in 4.15 of GJB598A
Temperature    Relative humidity  Atmosphere Vibration Impact  Shock Endurance
-55°C~
+12 5°C
(92-98)% at 40±2°C 101.33KPa-
4.39KPa
10-2000Hz,
196m/s²
980.7 m/s²  392m/s²   500cycles
Type Contacts Type Contacts  Type  Contacts
0802 2-Φ1 0803 3-Φ1 0804 4-Φ1
0805 5-Φ0.8 0807 7-Φ0.8 1006 6-Φ1
1007 7-Φ1 1010 10-Φ0.8 1203 3-Φ1.6
1208 8-Φ1 1210 10-Φ1 1404 4-Φ2.4
1405 5-Φ1.6 1412 4-Φ1.6+8-Φ1 1415 1-Φ1.6+14-Φ1
1418 18-Φ1 1419 19-Φ1 1604 4-Φ1.6
1608 8-Φ1 16-19 19-Φ1.6 1626 26-Φ1
1808 8-Φ2.4 1811 11-Φ1.6 1830 1-Φ1.6+29-Φ1
1832 32-Φ1 2016 16-Φ1.6 2024 24-Φ1
2027 27-Φ1 2039 2-Φ1.6+37-Φ1 2041 41-Φ1
2212 12-Φ2.4 2219 19-Φ2.4 2221 21-Φ1.6
2232 32-Φ1 2234 34-Φ1 2241 14-Φ1.6+27-Φ1
2255 55-Φ1 2419 19-Φ2.4 2431 31-Φ1.6
2461 61-Φ1 2427 16-Φ1.6+11-Φ1
